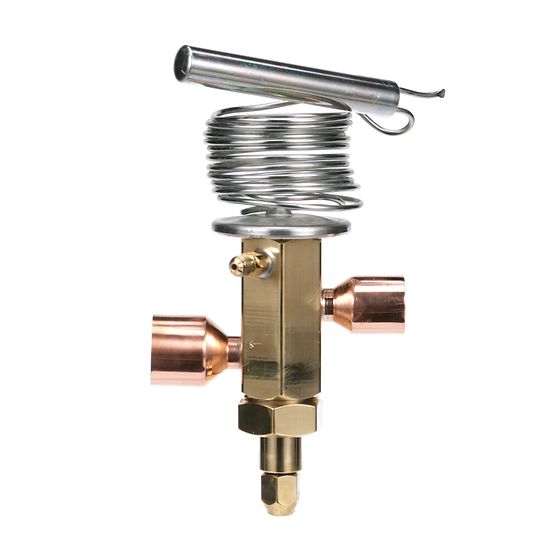

EMERSON Expansion Valves TRAE+ 30MC10FT1-1/8X1-3/8ODFS/T
Rp9,999,999.00
The TRAE Plus Series is a large capacity valve designed for refrigeration, air conditioning, heat pump, and chiller applications
- Specifications
Refrigerant Code : M (R-134a, Interchangeable with R-12)
Charge Code : C (Medium Temp)
Capacity : (Nominal) 30 Tons
Inlet Connection Size : 1-1/8” ODF Solder
Outlet Connection Size : 1-3/8” ODF Solder
Adjustable Superheat : Yes
Equalizer : External
Length : 10 Ft. Capillary
Body Design : Straight Thru
Maximum Working Pressure : 450 psig
Torque Power Assembly : 375 – 425 in. lbs.
Features
- Stainless steel power element eliminates corrosion and prevents valve failure
- Suitable for Bi-directional applications
- Replaceable power element and cage assembly for full serviceability
- Double balanced port design improves operation and stability over wide loads and evaporator temperature ranges
- Square body with straight-thru connections
- Solid copper connections
- External superheat adjustment
- Large diaphragm provides superior stability
- Permanent inlet strainer
